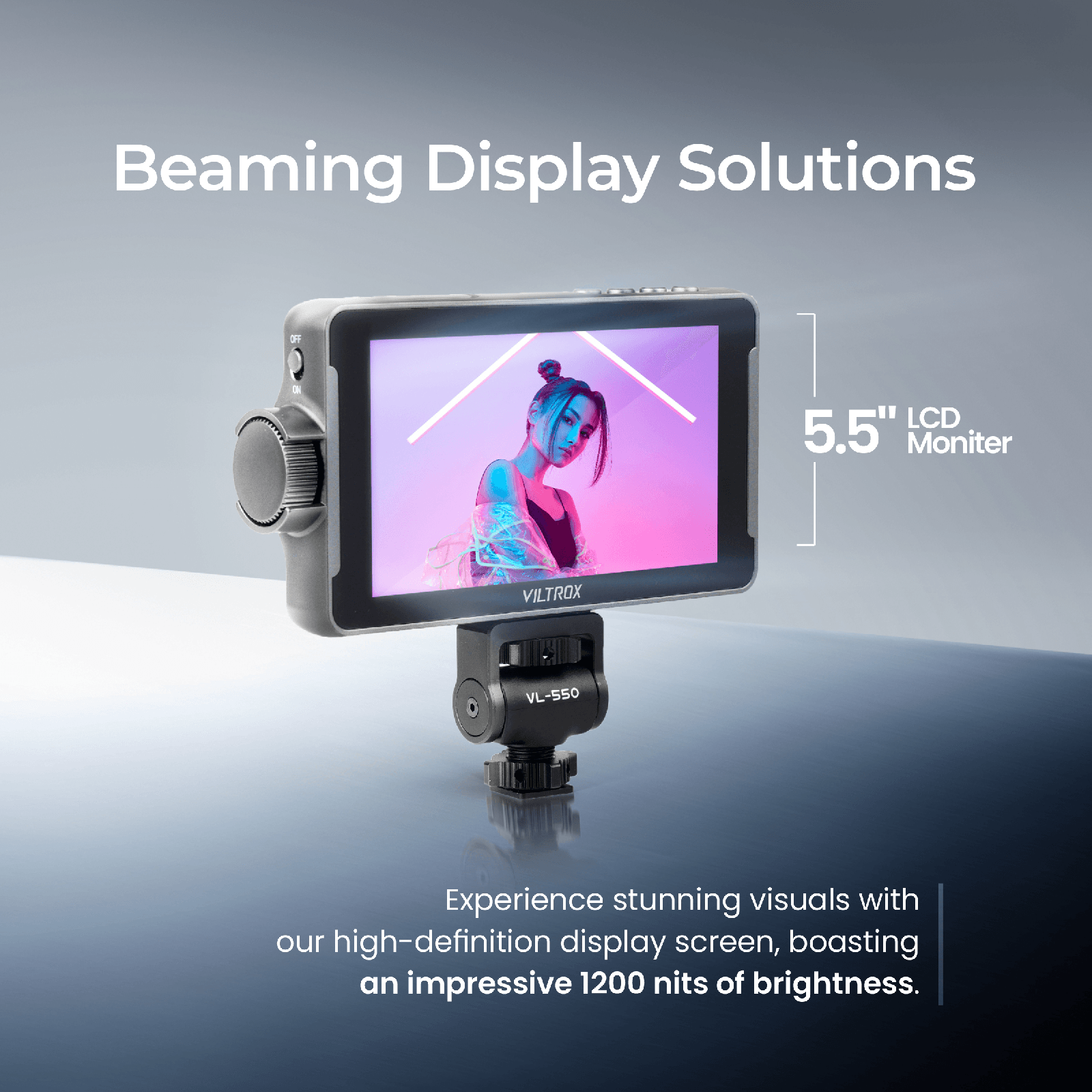

• 1200 Nits High Brightness High Definition :With 1200 Nits high-brightness display screen, not afraid of bright light, high-definition monitoring. With a resolution 1920×1080 pixels, 1200:1 contrast and 178°ultra-wide angle design, creators can enjoy high definition images quality when monitoring from different angles.
• Full HD Resolution, Reveals True Beauty:1920*1080 high-definition resolution, every color can be delicately and accurately restored, high-definition monitoring, capturing details, and showing the real beauty.
• 178° Ultra-wide Viewing Angle : The 178° ultra-wide-angle design is convenient for creators to enjoy clear picture quality when monitoring from different angles
• Professional Monitoring Software:DC-550 series has rich monitoring functions, import 3D LUT through the SD card , help the photographer achieve a variety of creative effects in the post-editing. In addition, it also has Paradewaveform, vector graph, brightness histogram, auxiliary focus, audio column, image flip, false color, etc.
• Custom 3D LUTS: Import 3D LUT through SD card, which is convenient for customers to use any camera Log mode to shoot and monitor, and it is also convenient to achieve a variety of creative styles in post-production.

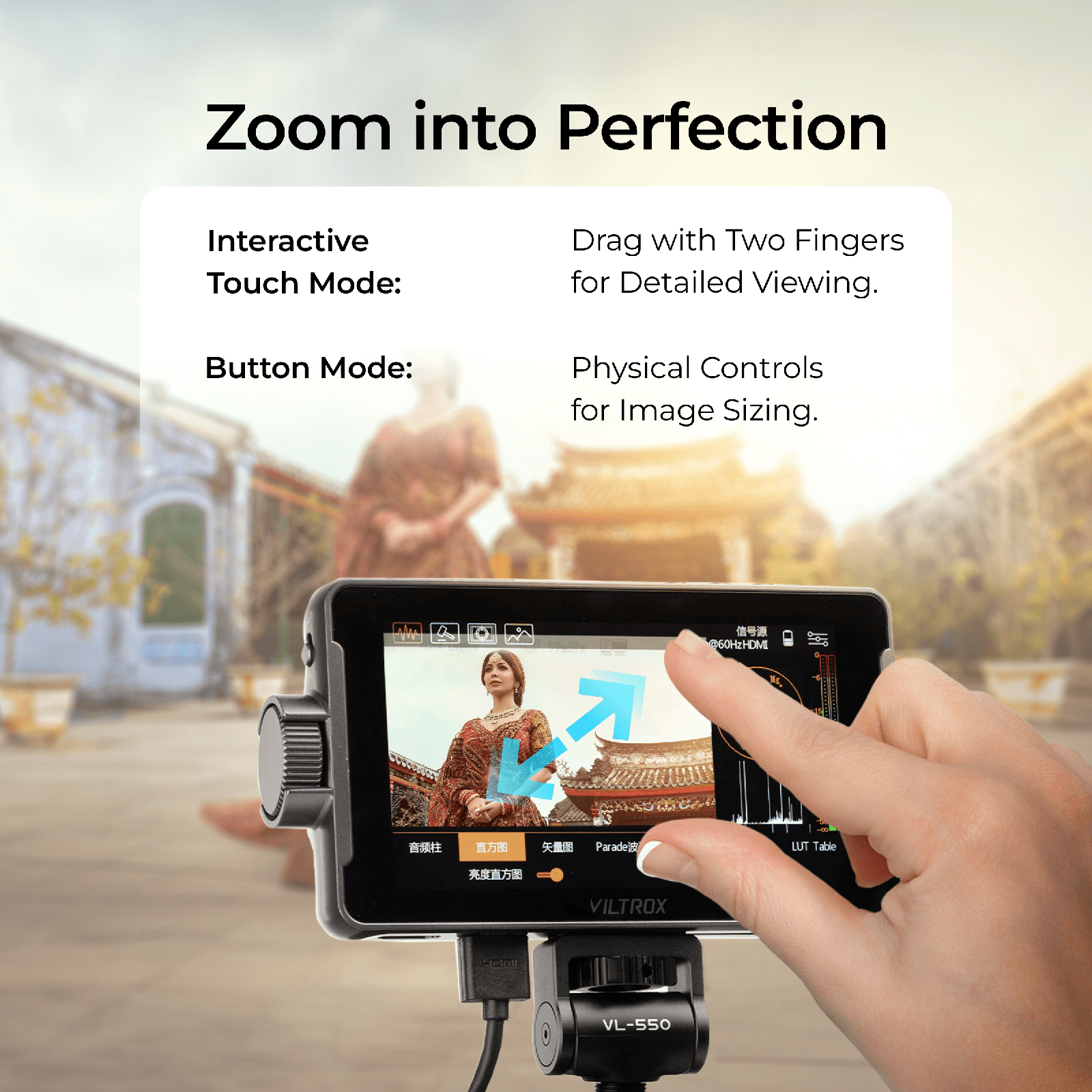

• Image Zoom Function: Touch screen mode: Support double-finger touch screen to drag the screen to view any point details. Button mode: Physical buttons to control image size.
• Settings and Touch Screen: DC-550 Pro is a touch screen version, which covers touch screen & button settings; DC-550 is a non-touch screen version, only supports button settings.
• Professional Color Adjustment True Color Rendering:In accordance with the REC.709 international color standard, Viltrox DC-550 series has the built-in 3D LUT precise color reproduction without distortion or color cast, making the visual experience more natural and real than the original camera screen.

Product Description

Feature:
LED Screen : 5.5-inch
Resolution : 1920X1080 pixels
Brightness : 1200cd/m

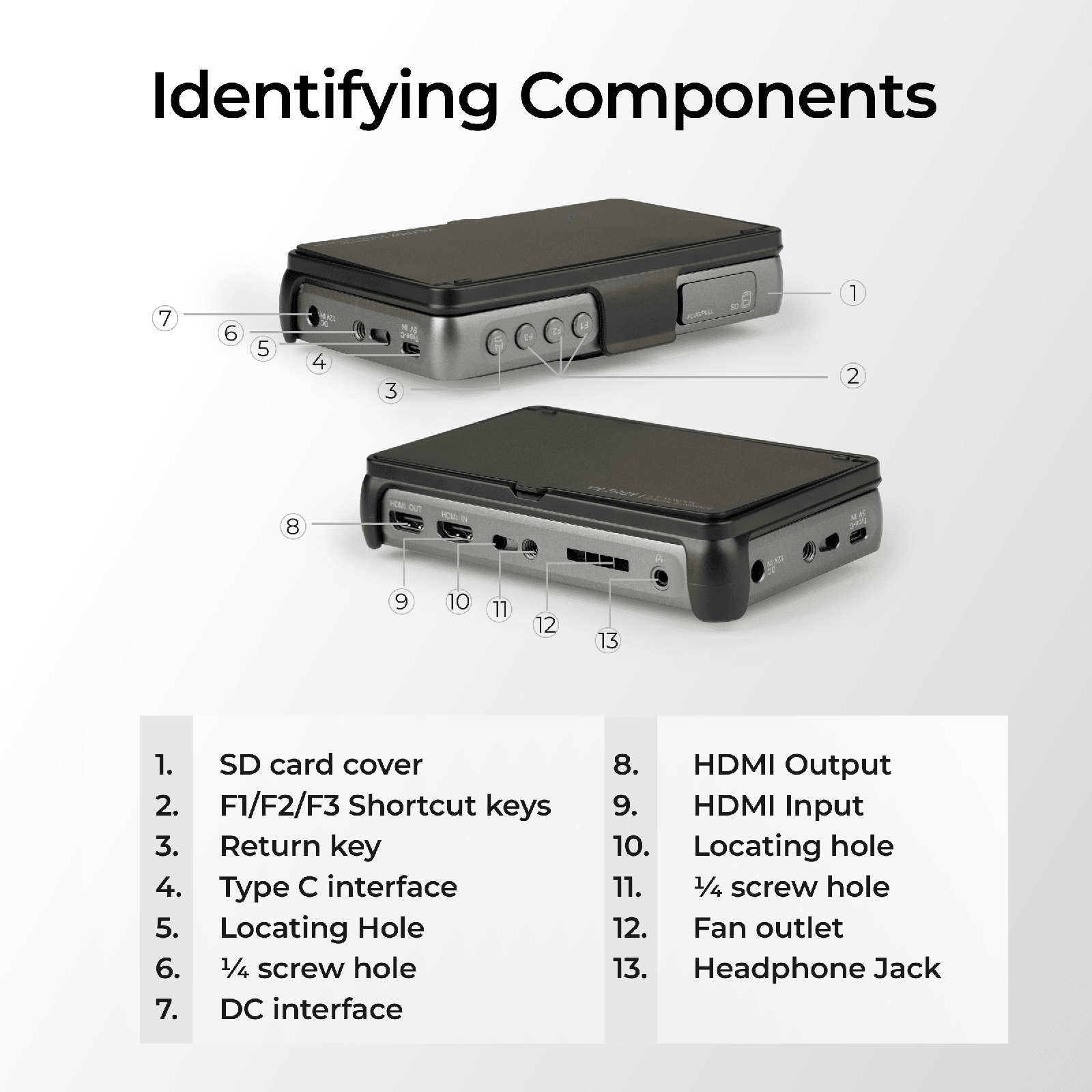

Input Signal Interface : HDMl1.4 signal input
Output Signal Interface : HDMI 1.4 signal output
Audio : Headphone Jack 3.5
Firmware Upgrade : SD card upgrade
Power Interface : DC12V-18V---2A

Type-C interface : ≥5V- 3A
Applicable Battery : NP-F550/F570/F750/F770/F960/F970 *(Not Included the Box)
Dimensions : 165X91×28.5mm
Supporting Language : English, Simplified Chinese
